Strengthen 3D Printing Safety: Metal Powder Explosion-Proof Vacuum Cleaners – More Than Cleaning, It’s Protection

With the rapid development of additive manufacturing (3D printing) technology, metal 3D printing has been widely applied in high-end fields such as aerospace, automotive manufacturing, and medical devices, thanks to its high precision and customization advantages. However, few people pay attention to the fine metal powders that support precise printing—they are not only the cornerstone of creation but also hide fatal safety hazards. A 5-micron titanium powder particle ignited in oxygen once reduced an entire workshop to ashes—the 2013 explosion at Powderpart’s metal 3D printing workshop in the United States sounded the alarm for the global manufacturing industry. The 3D printing metal powder explosion-proof vacuum cleaner is precisely the core equipment born to tame this "dangerous beauty." It is not only a workshop cleaning tool but also an "invisible guardian" that protects personnel safety and ensures production compliance.

When it comes to the cleaning pain points of metal 3D printing, practitioners who have used ordinary vacuum cleaners have a deep understanding: conventional cleaning equipment cannot meet the industry’s needs at all and may even become a "booster" for safety hazards. First, metal powders have extremely fine particle sizes, mostly between 0.1 and 100 microns. Among them, submicron-level powders are easily scattered with air currents, depositing on precision components such as print heads and lasers. This not only affects printing accuracy and equipment service life but also forms "dust clouds" in the workshop—the minimum ignition energy of such dust is only 3 millijoules, equivalent to one-tenth of the static electricity from a sweater, which can easily cause an explosion if not handled carefully. Second, metal powders such as aluminum and titanium are highly reactive—they are prone to oxidation and heat release when exposed to air, and may produce hydrogen when in contact with water. When replacing filters in traditional equipment, residual powders are likely to ignite spontaneously upon contact with air, turning the replacement operation into a "moment of death." More importantly, ordinary vacuum cleaners lack explosion-proof and anti-static designs, and sparks and static electricity generated during operation can all become "fuses" for igniting dust, which is why more than 70% of severe dust explosion accidents are directly related to non-explosion-proof equipment.

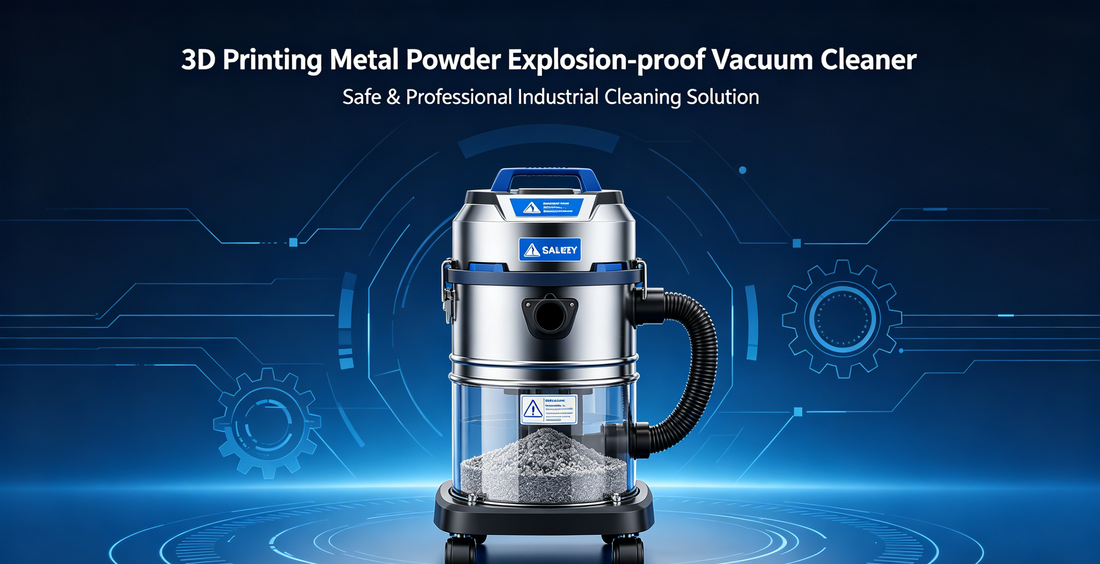

Different from ordinary cleaning equipment, the core value of 3D printing metal powder explosion-proof vacuum cleaners lies in "eliminating safety hazards from the source." Every design is centered around the four core needs of "explosion protection, anti-static, efficient cleaning, and powder recycling," making it a "safety-customized model" for metal 3D printing workshops. Behind it is a comprehensive safety protection system, rather than a simple combination of "dust suction + explosion protection."

First is the full-dimensional explosion-proof design, which is the core competitiveness of the equipment. Qualified explosion-proof vacuum cleaners must pass international certification standards such as ATEX and IECEx or equivalent certifications. For metal 3D printing scenarios, the equipment usually needs to meet the requirements of Zone 1 or Zone 21 for electrical equipment used in explosive atmospheres, and some high-risk scenarios also need to comply with the Ex d IIB T4 explosion-proof standard. Key components such as the equipment’s motor, circuit, and dust collection bucket all adopt an explosion-proof structure. The motor is equipped with built-in overheating protection to avoid high-temperature sparks during operation; at the same time, the entire machine is made of anti-static materials, and all components in contact with dust are treated with anti-static measures, with the overall grounding resistance controlled at ≤10⁶Ω, eliminating the risk of static accumulation from the source and completely eradicating ignition sources. More advanced models are also equipped with multiple safety interlocks such as explosion relief discs and flame arresters, which can quickly release pressure in the event of an accident and reduce accident losses.

Second is high-precision filtration and powder recycling, which balances cleaning efficiency and cost control. Filtering the fine powders of metal 3D printing is extremely difficult. Explosion-proof vacuum cleaners generally adopt HEPA H13/H14 level filtration systems, and some high-end models are also equipped with PTFE membrane filters, which can achieve a filtration efficiency of over 99.95% for particles above 0.3 microns. This not only can completely capture suspended dust and prevent secondary pollution but also avoid the harm to operators’ health caused by scattered powders—long-term exposure to metal powders can cause irreversible damage to the respiratory tract and lungs, and compliant cleaning equipment is also the basic guarantee for employees’ health. More notably, the equipment’s sealed dust collection design not only prevents dust leakage but also realizes the recycling and reuse of unused metal powders: after treatment by the screening system, the recycled powders can be reused for printing, with a recovery rate of over 98% in some scenarios, directly reducing the enterprise’s material costs by more than 30% and achieving a win-win situation of "safety + energy saving."

Third is scenario-based adaptation and intelligent upgrading, which caters to the diverse needs of metal 3D printing. Different printing processes (such as SLS, SLM, EBM) and different metal powders (aluminum powder, titanium powder, stainless steel powder) have different requirements for cleaning equipment. High-quality explosion-proof vacuum cleaners provide customized solutions, which can adjust suction power (usually ≥25 kPa) and air volume (≥300 cubic meters per hour) according to the type of 3D printing equipment and workshop layout. Equipped with accessories such as soft nozzles, they can not only adapt to the precise cleaning of small desktop printers but also meet the efficient cleaning of large industrial-grade printing equipment, avoiding damage to precision printing components. At the same time, intelligence has become an industry trend. Many models are equipped with Internet of Things (IoT) sensors and PLC control systems, which can monitor equipment status, filter life, and ambient dust concentration in real time, realizing functions such as automatic dust cleaning, differential pressure alarm, and full-load reminder. Some equipment can also be connected to the factory MES system, eliminating the need for on-site personnel, reducing manual maintenance costs, and improving the timeliness of safety management and control.

In practical applications, the value of explosion-proof vacuum cleaners has long been verified by the industry. A well-known additive manufacturing enterprise focusing on high-risk metal powder processing has not only completely solved the safety hazards of powder cleaning but also achieved efficient powder recycling after introducing water-bath explosion-proof vacuum cleaners, winning high recognition from the enterprise. Another aerospace enterprise reduced the workshop metal dust concentration from 15 mg/m³ to below 0.5 mg/m³ and increased the powder recovery rate to 98% after introducing a negative-pressure explosion-proof dust suction system, saving more than 20% in annual material costs, which not only ensures production safety but also improves economic benefits. These cases fully illustrate that explosion-proof vacuum cleaners are not an "additional expense" but a "necessary investment" for metal 3D printing enterprises to achieve large-scale and compliant production. When selecting equipment, it is necessary to focus on the equipment’s explosion-proof certification, dust adaptability, and the manufacturer’s after-sales service to ensure that the equipment meets actual working conditions and protects production safety for a long time.

With the continuous upgrading of metal 3D printing technology, the requirements for production safety will become increasingly strict. Metal powder explosion-proof vacuum cleaners have long transcended the category of "cleaning tools" and become core equipment for enterprises to fulfill production safety responsibilities, avoid compliance risks, and reduce operating costs. It weaves an "invisible barrier" with inert gas, intelligent filters, and anti-static designs, taming the danger of fine metal powders into the power of creation, protecting the safety of every practitioner, and supporting the high-quality development of the additive manufacturing industry.

Finally, the charm of metal 3D printing lies in creating infinite possibilities with powder; the value of explosion-proof vacuum cleaners lies in protecting these possibilities with professionalism. While pursuing technological breakthroughs and efficiency improvements, don’t forget to add a "safety lock" to production—choosing a qualified 3D printing metal powder explosion-proof vacuum cleaner is not only a respect for life but also the confidence for the long-term development of the enterprise.
